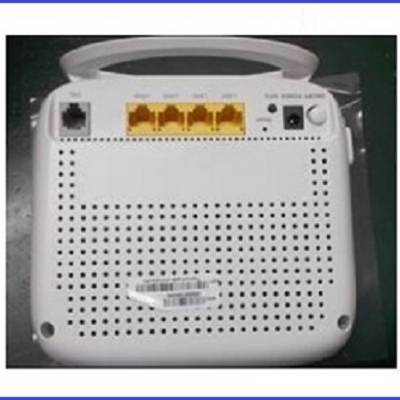

Power

Green/Red

Solid Light

Power on

Light off

Power off

LAN1~4

Green

Solid Light

Device connected to LAN port

Blinking

LAN Activity present

Light off

No Activity

WIFI

Green

Solid Light

Wireless enable

Blinking

Date transmission

Light off

Wireless disable

WPS

Green

Solid Light

WPS device connected

Light off

No WPS device connected

Blinking

Negotiating

USB

Green

Solid Light

Usb connected

Light off

No usb connected

Blinking

Date transmission

DSL

Green

Solid Light

DSL good sync.

Blinking

DSL attempting sync.

Light off

No carrier signal

Internet

Green/Red

Solid Light

IP connected

Light off

Power off

GE WAN

Green

Solid Light

Device connected to WAN port

Blinking

WAN Activity present

Light off

No Activity

VDSL Compliance

G.993.2

Vdsl profiles supported: 8a/b/c/d , 12a/b, 17a

US0

Diagnostics mode/DELT

Dying GASP

PhyR

Virtual Noise

Both Annex A and Annex B

Both Annex A and Annex B band plans

WIFI Compliance

IEEE 802.11b/g/n

Support 2x2 antennas

Support 2-stream spatial multiplexing up to 270Mbps

(Can upgrade to 300Mbps)

Support MCS 0-15 and MCS 32 modulation and coding rates

Support 20M and 40M channels

Support for STBC in both TX and RX

Network Protocols and Features

RFC2684 VC-MUX,

LLC/SNAP

encapsulations for

bridged or routed

packet

VC-MUX for any connection type

RFC2364 PPP over

RFC2364 LLC/NLPID

AAL5

encapsulation for PPPoA

802.1q/1p VLAN

over RFC2684

Bridge encapsulation

802.1q header insertion toward

WAN and de-insertion toward

LAN over RFC2684 bridge mode

over AAL5. Supports multiple

VLANs on multiple PVCs and

mapping VLANs, PVCs and

physical LAN port to multiple

bridges.

PPPoA

Support AUTO, PAP, CHAP,  MS-

CHAP authentication

Added static IP address

assignment.

PPPoE

Support AUTO, PAP, CHAP,  MS-

CHAP authentication

Added static IP address

assignment.

Multiple PPPoE

sessions on single

PVC

Allows multiple PPPoE sessions

on one PVC.

PPPoE pass-through

Supports concurrent PPPoE

clients inside the modem and

PPPoE clients on the LAN

devices

PPPoE - filtering of

non-PPPoE packets

between WAN and

LAN

Previously only filtered non-

PPPoE packet from LAN to WAN,

now works in both directions.

Auto-clean-up

remote staled PPP

sessions at BRAS

Clean up staled PPP sessions

(PPPoE and PPPoA) at ISP

BRAS after ADSL link goes down

then up or after modem reboots, if

scratch pad is enabled on top

boot flash.

IPoA

MER (a.k.a IP over

Ethernet over AAL5)

WAN to WAN traffic

blocking in bridge

mode

Second IP address

on LAN interface

Only public IP address and no

DHCP on second IP address.

ARP

DNS relay

DNS server fallback

in DNS Relay

Launch dnsprobe process when

both primary and secondary

DNS’s are assigned. Probe primary DNS status and fallback

to secondary DNS. When primary

DNS is up again, switch back to

primary DNS.

DHCP server

DHCP client

DHCP Relay

DHCP relay agent for IPoA and

MER type of WAN connections.

NAPT

IGMP Proxy

IGMP v1/v2

IGMP Snooping

IGMPv1/v2 snooping in bridge

mode. Added blocking mode.

RIP v1/v2

Enable RIP over multiple WAN

interfaces

Dynamic DNS

Automatic update WAN IP

address when it is changed to

and/or TZO DDNS

operator.

LAN port to VC

mapping

Supports traffic mapping between

a group of LAN port to a PVC.

Ethernet as WAN

interface.

Added Ethernet as WAN interface

to support PPPoE or IP over

Ethernet.

Multiple Protocol

VLAN Mux

Support multiple protocols on

single PVC using VLAN ID

Multiple Service PVC

Support PPPoE, Bridge, and

MER services over a single PVC

Firewall

Stateful Inspection

SPI Fire Wal

Denial of Service

attack

Passed DOS attacks: ARP

Attack, Ping Attack, Ping of

Death, Land, SYNC, Smurf,

Unreachable,Tear Drop

TCP/IP/Port/interface

filtering rules

Support both incoming and

outgoing filtering.

MAC Layer Filtering

Added IGMP in protocol menu.

Filter MAC frames based on

protocol type, source/destination

MAC address, direction

Day-time Parental

Control

VPN

IPsec VPN(optional)

Support VPN connection to

remote VPN gateway.

QoS

IP/Bridge/802.1p

QoS

Supported both routed and

bridged mode PVCs for packet

level QoS: classification rules,

priority queuing using ATM TX

queues, IP TOS/Precedence,

802.1p marking. Added DiffServ

DSCP marking and src/dest MAC

addresses classification.

Configuration and Management

Web based GUI

Embedded web server

Download image via

HTTP or tftp client

Download image via

FTP server

Download image via

TFTP server

Command Line

Interface via serial

port, telnet, or ssh

added dumpcfg, sntp commands.

Added option to tftp, adsl, wan, ppp commands. Upgrade sshd to version 0.46.

Menu-driven CLI via

serial port or telnet

Added dump configuration.

Universal Plug and

Play (UPnP) Internet

Gateway Device

(IGDv1.0)

V2.14L.02: Upgraded UPnP with latest version.

Added support for ADSL IGD. Enable/disable UPnP without reboot.

SNMP v1/v2c agent(optional)

SNMP MIBs: rfc2662

ADSL line MIB,

rfc2515 ATM MIB,

MIB-II

Support GET only except

GET/SET for system MIB and

ifAdminStatus in ifTable.

Date/time update

from SNTP Internet

Time Server

Automatic synchronize date and time with Internet Time Servers and local time zone setup.

Display Date/time in device info and syslog. Added SNTP command.

Daylight saving zone

TR-69(optional)

Support 273 parameters,digest/certificate/SSL security.

Support proprietary parameters

implementation without tr69c

framework sources

Code support

G.711( A law & u Law), G.723.1,G.726, G.729,etc

Silence suppression

Support Silence suppression

CE Report (89/336/EEC(EN55022/24),  2004/108/EC)

EU

FCC report(FCC CFR 47 Part 15 B)

US

IC report(ICES-003)

Canada

IC report(ICES-006)

Canada

C-Tick Report(AS/NZS CISPR 22)

New Zealand & Australia

VCCI Report(CISPR 22)

JAPAN

MIC report

KOREA

Anatel

Brazil

BSMI

Taiwan

CCC

China

Other’s

CE Report (R&TTE:1999/5/EC) TBR-21

European union(EU)

FCC Report (FCC CFR 47, Part 68)

US /FCC

ID(3P7XXXXXX..)

IC Report (CS-03)

Canada /IC

ID (4216AXXXX...)

A-Tick Report

New Zealand & Australia

NCC(PST***)

Taiwan

Anatel

Brazil

BSMI

Taiwan

CCC

China

Other’s

CE LVD report (LVD:73/23/EEC)

EN60950-1: 2001

European Union

UL/cUL Listed Mark

UL/CSA 60950-1

US / Canada

CSA International Mark

IEC60950-1

UL60950-1

CSA60950-1

EN 60950-1

World

US

Canada

European Union

CB Report

IEC60950-1: 2001

EN60950-1 :2001

World

European Union

Other’s requirements

1.

MTBF of Prediction Report

Bell-core TR-332, Issue 6 or Telcordia SR-332, Issue 1

2.

MTBF of Endurance test Report

SPEC

3.

MTBF of Demonstration test Report

SPEC

4.

Free Fall(Drop)Test Report

IEC 60068-2-32

5.

Random Vibration Test Report

IEC 60068-2-34: 1973

6.

Storage Test Report

IEC 60068-2-48

7.

Operation Cold(low temperature) Test

IEC 60068-2-1

8.

Operation Dry Heat(High temperature) Test

IEC 60068-2-2

9.

Operation Temperature Cycles Test

IEC 60068-2-14

10.

Thermal Shock Test

IEC 60068-2-14

11.

Damp Heat Steady State test

IEC 60068-2-78

12.

Thermal Profile Test

D-Link SPEC

13.

ESD Simulation Test report

IEC 61000-4-2

Air Discharge: ±8KV

Contact Discharge: ±4KV

14.

High / Low Temperature Start Test

SPEC

15.

Parts on/off & Insert/pulling Test

SPEC

16.

Acoustic Noise test

EN 27779 & *** 7779
